Rectangles

Rectangles are the most basic shape you can draw on a surface. They are defined by a position and a size. The position is the top-left corner of the rectangle, and the size is the width and height of the rectangle.

In AppCUI a rectangle is defined based on the following structure:

#![allow(unused)]
fn main() {
#[derive(Copy, Clone, Debug)]
pub struct Rect {
    left: i32,
    top: i32,
    right: i32,
    bottom: i32,
}
}

A rectangle can be created using the following methods:

Rect::new(left, top, right, bottom) - creates a new rectangle based on the provided coordinates.
Rect::with_size(left, top, width, height) - creates a new rectangle based on the provided position and size.
Rect::with_alignment(x, y, width, height, align) - creates a new rectangle based on the provided position, size and alignment.
Rect::with_point_and_size(point, size) - creates a new rectangle based on the provided point and size.

The alignment in the third method is defined as follows:

#![allow(unused)]
fn main() {
#[repr(u8)]
#[derive(Copy, Clone, PartialEq, Debug)]
pub enum RectAlignment {
    TopLeft = 0,
    Top,
    TopRight,
    Right,
    BottomRight,
    Bottom,
    BottomLeft,
    Left,
    Center,
}
}

Alignment	Decription	Preview

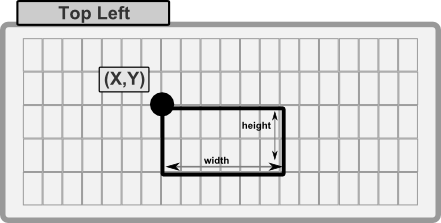

`TopLeft`	(X,Y) represents the top-left corner of the rectangle

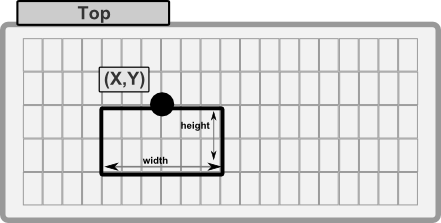

`Top`	(X,Y) represents the top-center of the rectangle

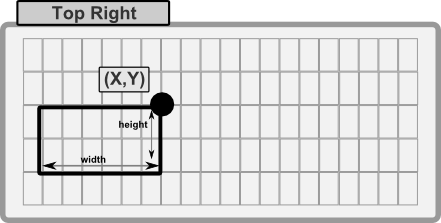

`TopRight`	(X,Y) represents the top-right corner of the rectangle

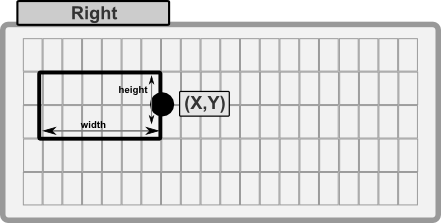

`Right`	(X,Y) represents the right-center of the rectangle

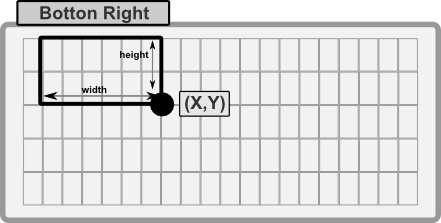

`BottomRight`	(X,Y) represents the bottom-right corner of the rectangle

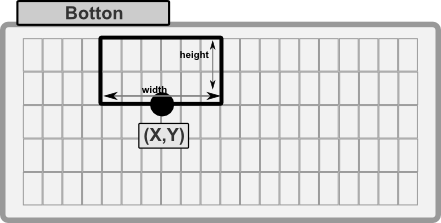

`Bottom`	(X,Y) represents the bottom-center of the rectangle

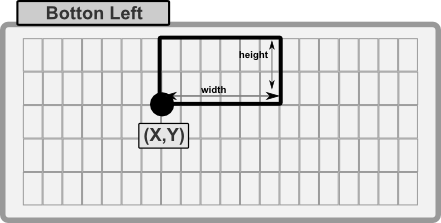

`BottomLeft`	(X,Y) represents the bottom-left corner of the rectangle

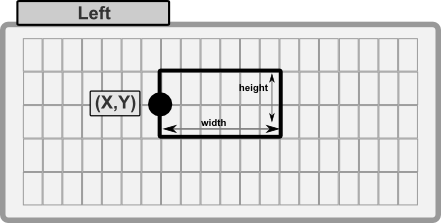

`Left`	(X,Y) represents the left-center of the rectangle

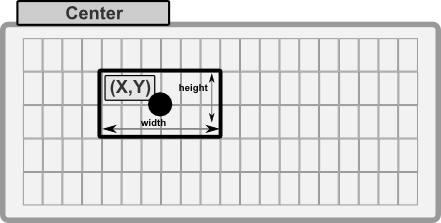

`Center`	(X,Y) represents the center of the rectangle

To draw a rectangle on a surface, you can use the following methods:

Method	Description
`draw_rect(...)`	Draws a rectangle on the surface by providing a `Rect` object, a line type and a character attribute.
`fill_rect(...)`	Fills a rectangle on the surface by providing a `Rect` object and a character attribute.

Example:

#![allow(unused)]
fn main() {
use appcui::graphics::*;

let mut surface = Surface::new(100, 50);
let r = Rect::new(10, 10, 20, 20);
// fill the rectangel with spaces (dark blue background)
surface.fill_rect(r, Character::new(' ', Color::White, Color::DarkBlue, CharFlags::None));
// draw a border around the rectangle (white on black)
surface.draw_rect(r, LineType::Single, CharAttribute::with_color(Color::White, Color::Black));
}

Methods

A rectangle has the following methods:

Method	Description
`left()`	Returns the left coordinate of the rectangle.
`top()`	Returns the top coordinate of the rectangle.
`right()`	Returns the right coordinate of the rectangle.
`bottom()`	Returns the bottom coordinate of the rectangle.
`width()`	Returns the width of the rectangle.
`height()`	Returns the height of the rectangle.
`size()`	Returns the size of the rectangle as a `Size` object.
`center_x()`	Returns the x coordinate of the center of the rectangle.
`center_y()`	Returns the y coordinate of the center of the rectangle.
`center()`	Returns the center of the rectangle as a `Point` object.
`top_left()`	Returns the top-left corner of the rectangle as a `Point` object.
`top_right()`	Returns the top-right corner of the rectangle as a `Point` object.
`bottom_left()`	Returns the bottom-left corner of the rectangle as a `Point` object.
`bottom_right()`	Returns the bottom-right corner of the rectangle as a `Point` object.
`contains(...)`	Checks if a point is inside the rectangle.
`contains_rect(...)`	Checks if a rectangle is fully inside (no intersections) the rectangle.
`inflate_with(...)`	Inflates the rectangle by the given amount in left, top, right, bottom.
`translate(...)`	Translates the rectangle by the given amount in x and y.
`set_left(...)`	Sets the left coordinate of the rectangle, optionally preserving the width.
`set_top(...)`	Sets the top coordinate of the rectangle, optionally preserving the height.
`set_right(...)`	Sets the right coordinate of the rectangle, optionally preserving the width.
`set_bottom(...)`	Sets the bottom coordinate of the rectangle, optionally preserving the height.
