Absolute position

This layout mode positions a control using absolute coordinates relative to its parent container.

Required parameters

  • x and y must be provided and represent the top-left corner of the control.

Optional parameters

  • width and height can be provided to set the control's size. If not provided, they default to 1 character (unless a minimum width or height is enforced by the control).

To create a control using this mode, you can use the following syntax:

  • Layout::absolute(...) - requires all four parameters (does not support percentages).
  • LayoutBuilder - and you will need to use the x(...), y(...) and optionall width(...) and height(...) methods.
  • layout! macro - and you will need to provide the x, y and optionally width and height parameters.

Remarks:

  • using Layout::absolute(...) does not support percentages for any parameter (if these are needed, consider using LayoutBuilder or layout! procmacro)
  • Negative values for x and y are allowed and will position the control outside the parent.

Visual Representation

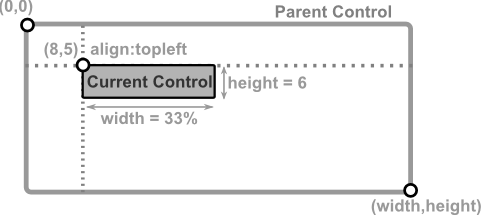

Below is an example where a control is positioned with its top-left corner at coordinates (8, 5) and a size of 18×6 characters.

Layout DescriptionVisual representation
A control positioned with its top-left corner at coordinates (8, 5) and a size of 18×6 characters

Examples

  1. Control positioned at (8, 5), size 30×6

    // using Layout class
    Layout::absolute(8, 5, 30, 6)
    // or using a LayoutBuilder:
    LayoutBuilder::new().x(8).y(5).width(30).height(6).build()
    // or using macro (with full-name parameters):
    layout!("x:8,y:5,width:30,height:6")
    // or using macro (with aliases):
    layout!("x:8,y:5,w:30,h:6")

  2. Control at (4, 3), width = 50% of parent, height = 10

    // using a LayoutBuilder:
    LayoutBuilder::new().x(4).y(3).width(0.5).height(10).build()
    // or using macro (with full-name parameters):
    layout!("x:4,y:3,width:50%,height:10")
    // or using macro (with aliases)
    layout!("x:4,y:3,w:50%,h:10")

  3. Control positioned at (25%, 50%) with height = 8 and the default width.

    // using a LayoutBuilder:
    LayoutBuilder::new().x(0.25).y(0.5).height(8).build()
    // or using macro (with full-name parameters):
    layout!("x:25%,y:50%,height:8")
    // or using macro (with aliases)
    layout!("x:25%,y:50%,h:8")
