CheckBox

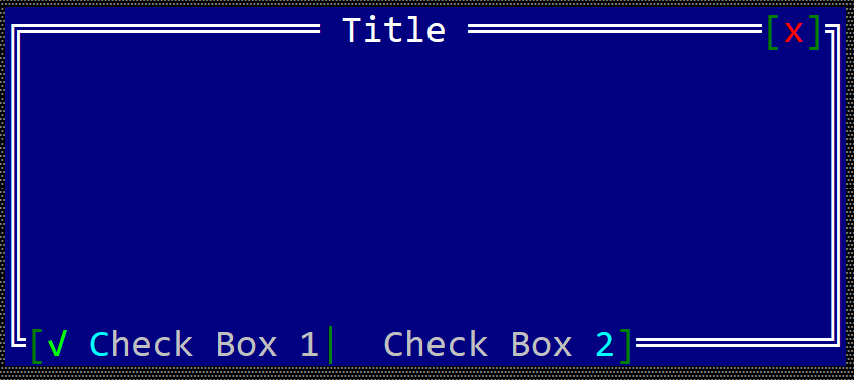

A toolbar checkbox is a item that can be positioned on the top or bottom part of a windows (like in the following image) that can have two states (checked or un-checked).

To create a checkbox within a toolbar use the toolbar::CheckBox::new(...) method:

#![allow(unused)]
fn main() {
let toolbar_checkbox = toolbar::CheckBox::new("content", true);
}

or the toolbaritem! macro:

#![allow(unused)]
fn main() {
let toolbar_checkbox_1 = toolbaritem!("content,type=checkbox");
let toolbal_checkbox_2 = toolbaritem!("content='Start',type:checkbox,checked: true");
let toolbal_checkbox_3 = toolbaritem!("content='&Stop',type:checkbox,tooltip:'a tooltip'");
let toolbal_checkbox_4 = toolbaritem!("content='hidden checkbox',type:checkbox,visible:false");
}

Using the character & as part of the button caption will associate the next character (if it is a letter or number) as a hot-key for the checkbox. For example, the following caption &Option one will set Alt+O as a hot-key for the checkbox.

The following parameters are supported for a toolbar checkbox:

Parameter name	Type	Positional parameter	Purpose
`text` or `caption`	String	Yes (first postional parameter)	The caption (text) written on the checkbox
`type`	String	No	For a checkbox use: `type:Checkbox`
`tooltip`	String	No	The tooltip associated with the button
`visible`	Bool	No	`true` if the toolbar item is visible (this is also the default setting) or `false` otherwise
`check` or `checked`	Bool	No	`true` if the checkbox is checked or `false` otherwise

Besides the default methods that every toolbar item has (as described here), the following methods are available for a toolbar label:

Method	Purpose
`set_caption(...)`	Sets the new caption for a checkbox. The width (in characters) of the checkbox is the considered to be the number of characters in its content
`caption()`	Returns the current caption of a checkbox.
`set_checked()`	Sets the new checked stated of the checkbox.
`is_checked()`	`true` if the toolbar checkbox is checked or `false` otherwise

Events

To intercept a change in a checkbox checked state, you need to implement ToolBarEvents for the current window, as presented in the following example:

#![allow(unused)]
fn main() {
#[Window(events=ToolBarEvents)]
struct MyWin { /* data members */ }

impl ToolBarEvens for MyWin {
    fn on_checkbox_clicked(&mut self, handle: Handle<toolbar::CheckBox>, checked: bool) -> EventProcessStatus {
        // do an action based on the new state of the checkbox
        // parameter `checked` is true if the toolbar checkbox is checked or false otherwise
    }
}
}

Example

The following example creates a window with two checkboxes toolbar items and a label. Clicking on each one of the checkboxes will show a message on the label that states the check state of that checkbox.

#[Window(events = ToolBarEvents)]
struct MyWin {
    cb1: Handle<toolbar::CheckBox>,
    cb2: Handle<toolbar::CheckBox>,
    text: Handle<Label>,
}

impl MyWin {
    fn new() -> Self {
        let mut win = MyWin {
            base: window!("'My Win',d:c,w:40,h:6"),
            cb1: Handle::None,
            cb2: Handle::None,
            text: Handle::None,
        };
        // create a group
        let g = win.toolbar().create_group(toolbar::GroupPosition::BottomRight);
        // add checkboxes
        win.cb1 = win.toolbar().add(g, toolbar::CheckBox::new("Opt-1",false));
        win.cb2 = win.toolbar().add(g, toolbar::CheckBox::new("Opt-2",false));
        // add a label
        win.text = win.add(label!("'',d:c,w:20,h:1"));
        win
    }
}
impl ToolBarEvents for MyWin {
    fn on_checkbox_clicked(&mut self, handle: Handle<toolbar::CheckBox>, checked: bool) -> EventProcessStatus {
        let txt = match () {
            _ if handle == self.cb1 => format!("Opt-1 is {}",checked),
            _ if handle == self.cb2 => format!("Opt-2 is {}",checked),
            _ => String::new(),
        };
        let h = self.text;
        if let Some(label) = self.control_mut(h) {
            label.set_caption(&txt);
        }
        EventProcessStatus::Processed
    }
}

fn main() -> Result<(), appcui::system::Error> {
    let mut a = App::new().build()?;
    a.add_window(MyWin::new());
    a.run();
    Ok(())
}
