TreeView

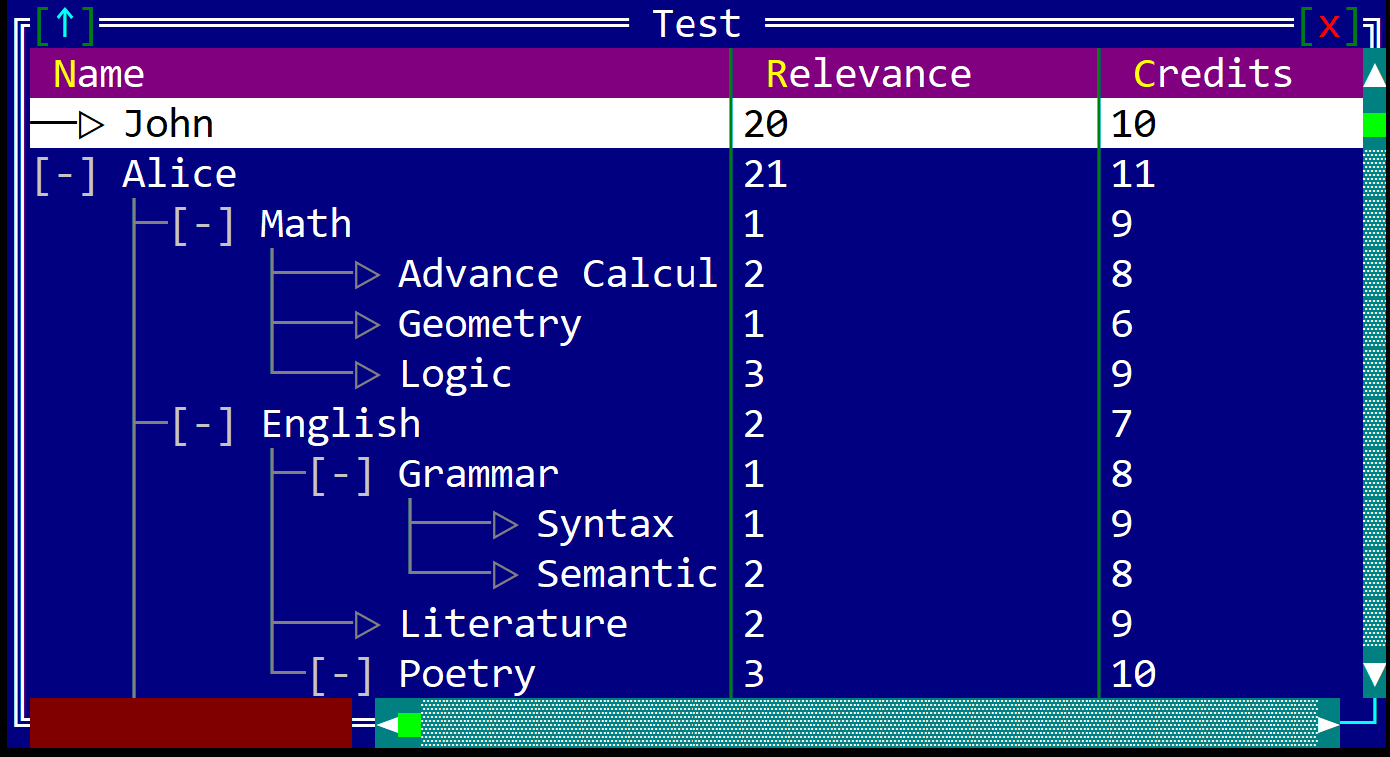

A TreeView is a templetize (generics based) control that allows you to view a list of objects as a tree.

It can be created using TreeView::new(...) and TreeView::with_capacity(...) methods or with the treeview! macro.

let l1: TreeView<T> = TreeView::new(Layout::new("..."),treeview::Flags::None);
let l2: TreeView<T> = TreeView::with_capacity(10,Layout::new("..."),treeview::Flags::ScrollBars);
let l3 = treeview!("class: T, flags: Scrollbar, d:c, w:100%, h:100%");
let l4 = treeview!("type: T, flags: Scrollbar, d:c, view:Columns(3)");
let l5 = treeview!("T, d:c, columns:[{Name,10,left},{Age,5,right},{City,20,center}]");

where type T is the type of the elements that are shown in the tree view and has to implement ListItem trait.

A treeview supports all common parameters (as they are described in Instantiate via Macros section). Besides them, the following named parameters are also accepted:

The field columns is a list of columns that are displayed in the TreeView control. Each column is a tuple with three elements: the name of the column, the width of the column in characters, and the alignment of the column (left, right, or center). The column field accespts the following parameters:

To create a column with the name Test, that hast Ctrl+E assigned as a hot key, with a width of 10 characters, and aligned to the right, you can use the following formats:

• {caption: "T&est", width: 10, align: right}
• {name: "T&est", w: 10, a: right}
• {T&est, 10, right}
• {T&est,10,r}

Similary, to create a treeview with 3 columns (Name, Age, and City) with the widths of 10, 5, and 20 characters, respectively, and aligned to the left, right, and center, you can use the following format:

let l = treeview!("T, d:c, columns:[{Name,10,left},{Age,5,right},{City,20,center}]");

A treeview supports the following initialization flags:

• treeview::Flags::ScrollBars or ScrollBars (for macro initialization) - this enables a set of scrollbars that can be used to navigate through the list of items. The scrollbars are visible only when the control has focus
• treeview::Flags::SearchBar or SearchBar (for macro initialization) - this enables a search bar that can be used to filter the list of items. The search bar is visible only when the control has focus
• treeview::Flags::SmallIcons or SmallIcons (for macro initialization) - this enables the small icons (one character) view mode for the tree view.
• treeview::Flags::LargeIcons or LargeIcons (for macro initialization) - this enables the large icons (two characters or unicode surrogates) view mode for the tree view.
• treeview::Flags::CustomFilter or CustomFilter (for macro initialization) - this enables the custom filter that can be used to filter the list of items. The custom filter should be provided by the user in the ListItem implementation.
• treeview::Flags::NoSelection or NoSelection (for macro initialization) - this disables the selection of items from the tree view. This flag is useful when the tree view is used only for displaying information and the selection is not needed (such as a Save or Open file dialog).
• treeview::Flags::HideHeader or HideHeader (for macro initialization) - this hides the header of the tree view. This flag is useful when the tree view is used only for displaying information and the header is not needed.

Events

To intercept events from a treeview, the following trait has to be implemented to the Window that processes the event loop:

pub trait TreeViewEvents<T: ListItem + 'static> {
    // called when the current item is changed
    fn on_current_item_changed(&mut self,
                               handle: Handle<TreeView<T>>,
                               item:   Handle<treeview::Item<T>>) -> EventProcessStatus
    {
        EventProcessStatus::Ignored
    }

    // called whenever an item was collapes.
    // the recursive parameter indicates that all children and their children
    // were collapesed as well
    fn on_item_collapsed(&mut self,
                         handle:    Handle<TreeView<T>>,
                         item:      Handle<treeview::Item<T>>,
                         recursive: bool) -> EventProcessStatus
    {
        EventProcessStatus::Ignored
    }

    // called whenever an item was expanded.
    // the recursive parameter indicates that all children and their children
    // were expanded as well
    fn on_item_expanded(&mut self,
                        handle:    Handle<TreeView<T>>,
                        item:      Handle<treeview::Item<T>>,
                        recursive: bool) -> EventProcessStatus
    {
        EventProcessStatus::Ignored
    }


    // called when the selection is changed
    fn on_selection_changed(&mut self, handle: Handle<TreeView<T>>) -> EventProcessStatus
    {
        EventProcessStatus::Ignored
    }

    // called when you double click on an item (or press Enter)
    fn on_item_action(&mut self,
                      handle: Handle<TreeView<T>>,
                      item:   Handle<treeview::Item<T>>) -> EventProcessStatus
    {
        EventProcessStatus::Ignored
    }
}

Methods

Besides the Common methods for all Controls a tree view also has the following aditional methods:

Adding items

Deleting items

Item access

Selection & Folding

Miscellaneous

Key association

The following keys are processed by a TreeView control if it has focus:

Aditionally, typing any character will trigger the search bar (if the flag SearchBar is present) and will filter the items based on the search text. While the search bar is active, the following keys are processed:

• Backspace - removes the last character from the search text
• Escape - clears the search text and closes the search bar
• Enter - moves to the next match
• Movement keys (such as Up, Down, Left, Right, PageUp, PageDown, Home, End) - will disable the search bar, but will keep the search text

While in the column resize mode, the following keys are processed:

• Left, Right - increases or decreases the width of the current column
• Ctrl+Left, Ctrl+Right - moves the focus to the previous or next column
• Escape or movement keys - exits the column resize mode

Populating a tree view

To add items to a tree view, you can use the add and add_to_parent methods. The add method adds an item to the root of the tree view, while the add_to_parent method adds an item as a child to another item. Both of them return a handle to the newly added item.

The following example shows how to add items to a tree view:

let mut treeview = TreeView::new(Layout::new("d:c"),treeview::Flags::ScrollBars);
// add two items to the root of the tree view
let handle_item_1 = treeview.add(...);
let handle_item_2 = treeview.add(...);
// add a child item to the first item
let handle_item_3 = treeview.add_to_parent(...,handle_item_1);
// add a child to the child of the first item
let handle_item_4 = treeview.add_to_parent(...,handle_item_3);

Whenever an element is being added to a TreeView, the TreeView will try to filter and sort the item based on its content. These operations are expensive so if you need to add multiple items to a TreeView, you can use the add_batch method. This method will add all items to the TreeView and will filter and sort the items only once, after all items were added.

To add an item to a tree view, the item type has to implement the ListItem trait. Based on the implementation of this trait, the TreeView will:

• display an item based on a specification
• filter the item based on the search text or a specific filtering algorithm
• sort the items based on a column index
• get a list of columns and their specifications (name, width, alignment)

Example

The following example shows how to create a tree view with a custom item type that implements the ListItem trait:

use appcui::prelude::*;

#[derive(ListItem)]
struct MyItem {
    #[Column(name="Text", width=100)]
    text: String,
}
impl MyItem {
    pub fn new(text: &str) -> Self {
        Self {
            text: text.to_string(),
        }
    }
}

fn main() -> Result<(), appcui::system::Error> {
    let mut a = App::new().build()?;
    let mut w = window!("Tree,d:c");
    let mut tv = treeview!("MyItem,d:c,flags: ScrollBars+SearchBar+HideHeader");
    let h1 = tv.add(MyItem::new("Root Item 1"));
    let h2 = tv.add(MyItem::new("Root Item 2"));
    let h1_1 = tv.add_to_parent(MyItem::new("First Child of Root Item 1"), h1);
    let h1_2 = tv.add_to_parent(MyItem::new("Second Child of Root Item 1"), h1);
    let h1_3 = tv.add_to_parent(MyItem::new("Third Child of Root Item 1"), h1);
    let h1_1_1 = tv.add_to_parent(MyItem::new("First Child of First Child of Root Item 1"), h1_1);
    let h2_1 = tv.add_to_parent(MyItem::new("First Child of Root Item 1"), h2);
    let h2_2 = tv.add_to_parent(MyItem::new("Second Child of Root Item 1"), h2);

    w.add(tv);
    a.add_window(w);
    a.run();
    Ok(())
}
